Rotary Control Valve - RAC-5

  • Rotary Control Valve - RAC-SERIES-RAC 5
Rotary Control Valve - RAC-5
Product Description

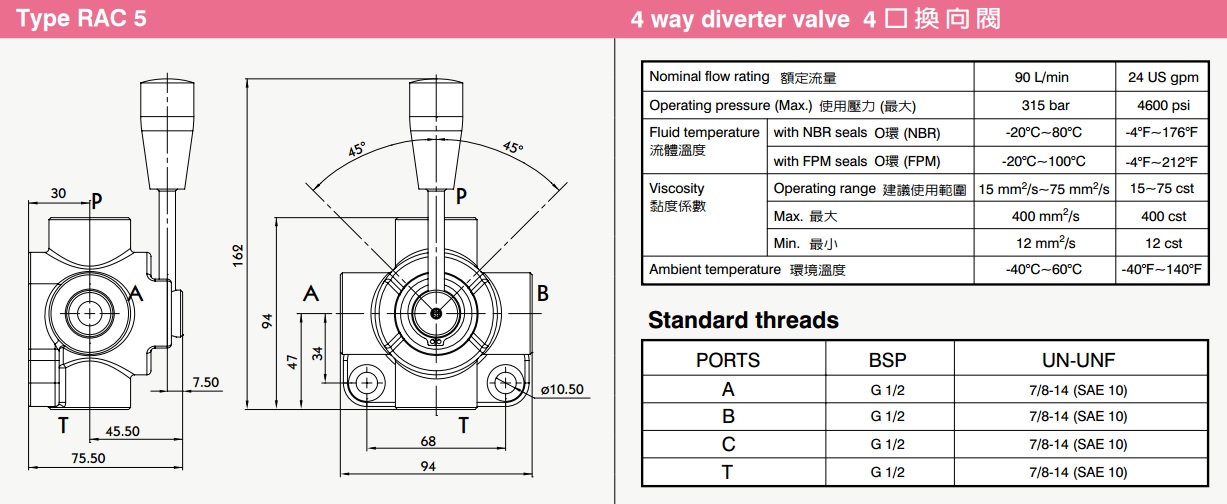

Please refer the following specification and PDF for more details of rotary control valves. Please do not hesitate to contact us for more if you have any comments or question.
Product Specification
Nominal Flow Rating   90 L/min 24 US gpm
Operating Pressure (Max.)   315 bar 4600 psi
Fluid Temperature with NBR seals from -20°C to 80°C -4°F ~ 176°F
with FPM seals from -20°C to 100°C -4°F ~ 212°F
Viscosity operating range from 15 to 75 mm²/s 15 ~ 75 cst
max. 400 mm²/s 400 cst
min. 12 mm²/s 12 cst
Ambient Temperature   from -40°C to 60°C -40°F ~ 140°F

Rotary Control Valves RAC
